DAAM Android Botnet being distributed through Trojanized Applications

Botnet With Ransomware And Data Theft Capabilities



In recent years, the widespread use of Android devices has made them a prime target for cybercriminals. Android botnet is a common malware type that cybercriminals use to gain access to targeted devices. These devices can be controlled remotely to carry out various malicious activities.

Cyble Research & Intelligence Labs (CRIL) recently analyzed an Android Botnet shared by MalwareHunterTeam. The mentioned malicious sample is the Trojanized version of the Psiphon application and identified as DAAM Android Botnet, which provides below features:

  • Keylogger
  • Ransomware
  • VOIP call recordings
  • Executing code at runtime
  • Collects browser history
  • Records incoming calls
  • Steals PII data
  • Opens phishing URL
  • Capture photos
  • Steal clipboard data
  • Switch WiFi and Data status

The DAAM Android botnet provides an APK binding service wherein a Threat Actor (TA) can bind malicious code with a legitimate app. CRIL analyzed an APK file named PsiphonAndroid.s.apk with the hash value of “184356d900a545a2d545ab96fa6dd7b46f881a1a80ed134db1c65225e8fa902b” which contains DAAM botnet malicious code bonded with a legitimate Psiphon application.

The malware connects to the Command and Control (C&C) server hxxp://192.99.251[.]51:3000, and the figure below shows the DAAM Android botnet admin panel.

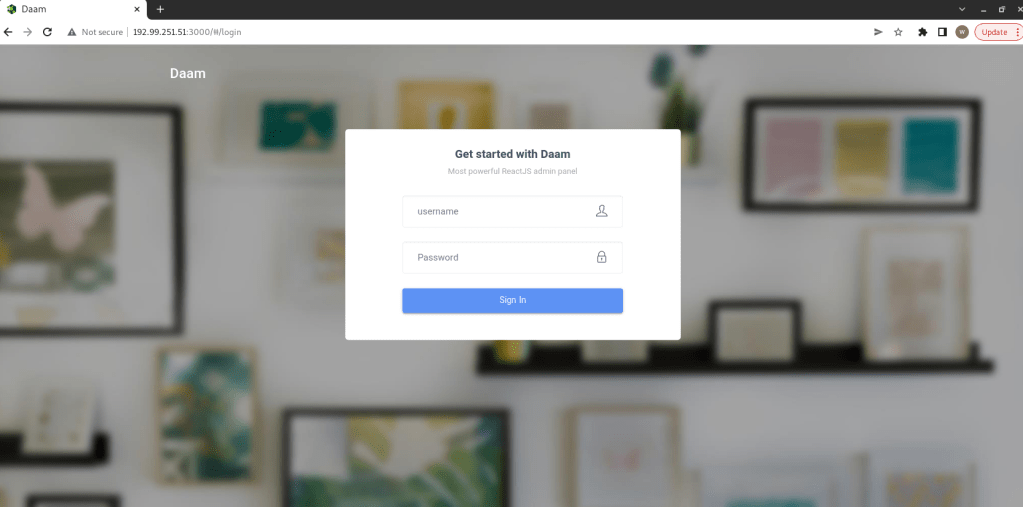

Figure 1 – Admin panel of DAAM Android botnet



The C&C server is also present in various malicious applications, some of which were initially identified in August 2021. This indicates that the DAAM Android botnet has been operational since 2021 and constantly targeting Android users.

Figure 2 – C&C server present in several malicious applications



Technical Analysis



APK Metadata Information

  • App Name: Psiphon
  • Package Name: com.psiphon3
  • SHA256 Hash: 184356d900a545a2d545ab96fa6dd7b46f881a1a80ed134db1c65225e8fa902b



The figure below shows the metadata information of the application.

Figure 3 – Application metadata information



Initially, the malware establishes a socket connection and communicates with the C&C server at hxxp://192.99.251[.]51:3000 to obtain commands for carrying out a range of malicious activities, as depicted in the figure below.

Figure 4 – Socket connection

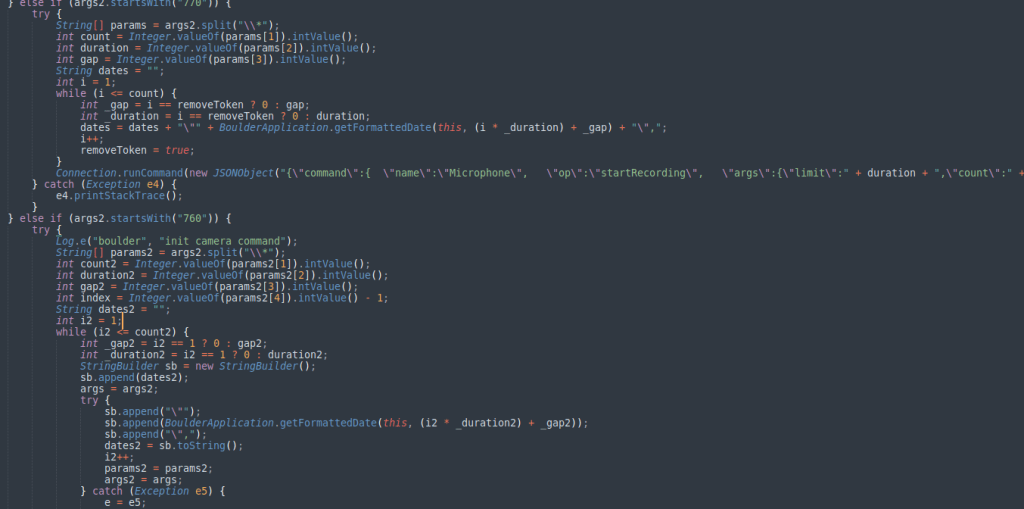

Figure 5 – Malware receiving commands



The DAAM Android botnet provides various command operations, which are explained below:

Keylogger:



Malware uses the Accessibility Service to monitor users’ activity. It saves the captured keystrokes along with the application’s package name into a database, as shown in the figure below.

Figure 6 – Keylogger activity



Ransomware:



The DAAM botnet provides a Ransomware module that leverages the AES algorithm to encrypt and decrypt files on the infected device. It retrieves the password required for encryption and decryption from the C&C server. The malware also saves a ransom note in the “readme_now.txt” file.

The Ransomware activity is illustrated in the figure below.

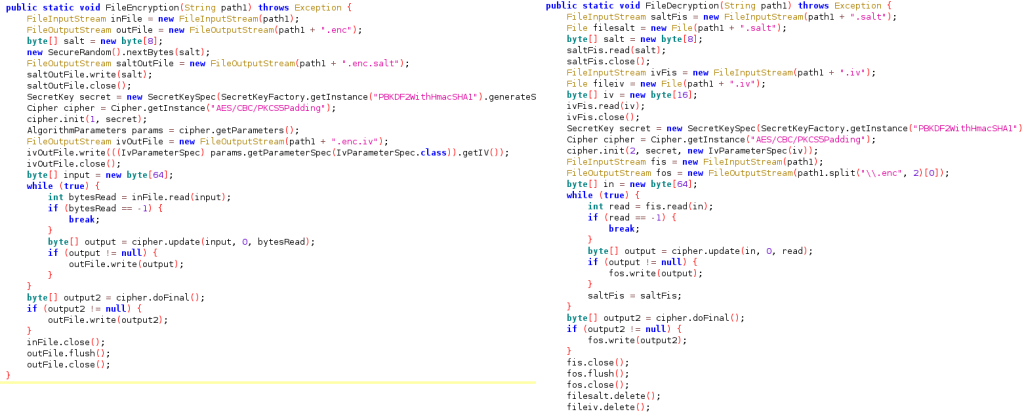

Figure 7 – Ransomware encryption and decryption module

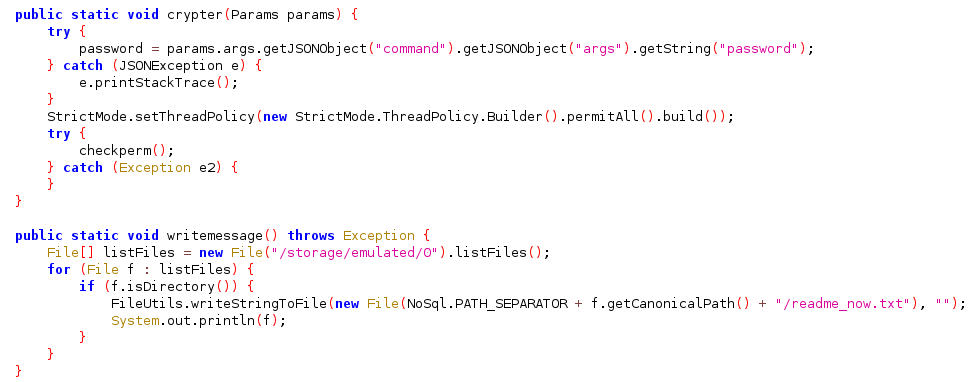

Figure 8 – Receiving password from C&C server and writes ransom message into a readme_now.txt file



VOIP call Recordings:



The DAAM botnet exploits the Accessibility service to monitor the components of social media applications such as WhatsApp, Skype, Telegram, and many others responsible for VOIP calls. If the user interacts with the below-mentioned components, malware initiates audio recording.

Below is the list of components targeted by the DAAM botnet:

  • com.whatsapp.VoipActivity
  • com.whatsapp.VoipActivityV2
  • com.whatsapp.voipcalling.VoipActivityV2
  • com.bbm.ui.voice.activities.InCallActivity
  • com.bbm.ui.voice.activities.InCallActivityNew
  • com.bbm.ui.voice.activities.IncomingCallActivityNew
  • com.turkcell.bip.voip.call.InCallActivity
  • com.turkcell.bip.voip.call.IncomingCallActivity
  • im.thebot.messenger.activity.chat.AudioActivity
  • im.thebot.messenger.activity.chat.VideoActivity
  • im.thebot.messenger.voip.ui.AudioCallActivity
  • im.thebot.messenger.voip.ui.VideoCallActivity
  • com.facebook.mlite.rtc.view.CallActivity
  • com.facebook.rtc.activities.WebrtcIncallActivity
  • com.facebook.rtc.activities.WebrtcIncallFragmentHostActivity
  • com.google. Android.apps.hangouts.hangout.HangoutActivity
  • com.google. Android.apps.hangouts.elane.CallActivity
  • com.bsb.hike.voip.view.VideoVoiceActivity
  • com.imo.android.imoim.av.ui.AudioActivity
  • com.imo.android.imoim.av.ui.AVActivity
  • com.kakao.talk.vox.activity.VoxFaceTalkActivity
  • com.kakao.talk.vox.activity.VoxVoiceTalkActivity
  • com.linecorp.linelite.ui.android.voip.FreeCallScreenActivity
  • jp.naver.line.android.freecall.FreeCallActivity
  • com.linecorp.voip.ui.freecall.FreeCallActivity
  • com.linecorp.voip.ui.base.VoIPServiceActivity
  • ru.mail.instantmessanger.flat.voip.CallActivity
  • ru.mail.instantmessanger.flat.voip.IncallActivity_
  • org.telegram.ui.VoIPActivity
  • com.microsoft.office.sfb.activity.call.IncomingCallActivity
  • com.microsoft.office.sfb.activity.call.CallActivity
  • com.skype.m2.views.Call
  • com.skype.m2.views.CallScreen
  • com.skype.android.app.calling.PreCallActivity
  • com.skype.android.app.calling.CallActivity
  • com.Slack.ui.CallActivity
  • com.sgiggle.call_base.CallActivity
  • com.enflick. Android.TextNow.activities.DialerActivity
  • com.viber.voip.phone.PhoneFragmentActivity
  • com.vonage.TimeToCall.Activities.InCall
  • com.vonage.TimeToCall.Activities.CallingIntermediate
  • com.tencent.mm.plugin.voip.ui.VideoActivity
Figure 9 – Starting VOIP call recording



Collecting Browser History:



The malware can gather bookmarks and browsing history stored on the target device and send them to the C&C server, as depicted below.

Figure 10 – Stealing Browser history



Executing code at runtime:



The malware can execute the code at runtime using DexClassLoader by receiving the method name, class name, and URL from the C&C server. The malware communicates with the received URL to fetch parameters of the targeted method, which is responsible for executing other malicious activities. The dynamic code runner module is illustrated in the below image.

Figure 11 – Running dynamic code



Stealing PII data:



In addition to the functionalities mentioned above, the DAAM botnet gathers Personally Identifiable Information (PII) from the infected device, including but not limited to contacts, SMS messages, call logs, files, basic device details, and location data.

Figure 12 – Collecting call logs



Figure 13 – Collecting basic device information

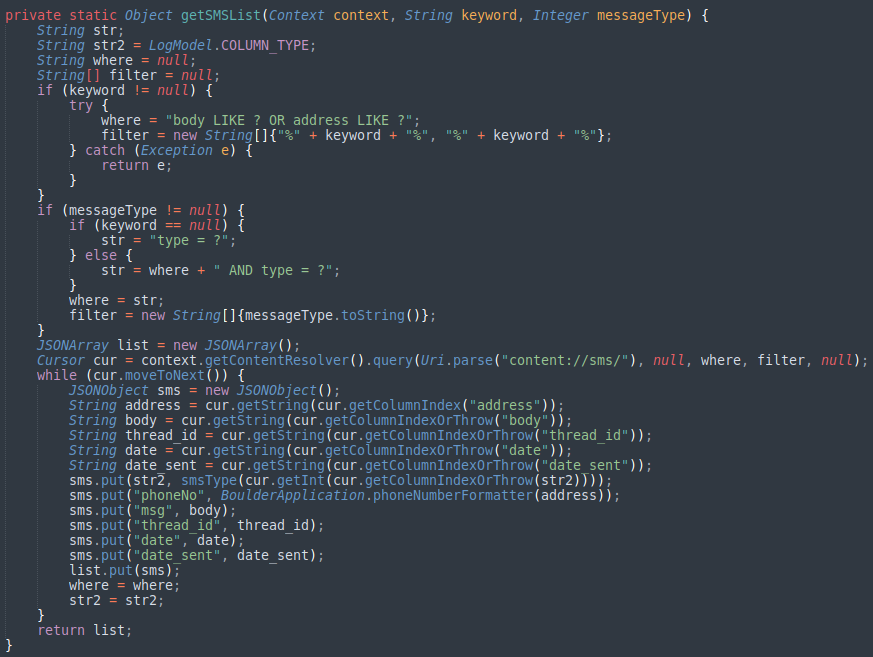

Figure 14 – Collecting SMSs

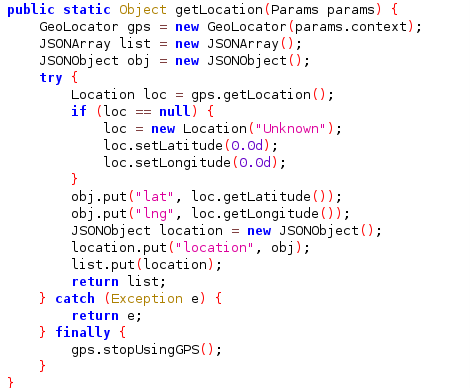

Figure 15 – Stealing location



Opening URL:



Malware can receive a phishing URL from a C&C server, then load it into a WebView component to steal the victim’s login information. The TA can use this feature to launch a social engineering attack by sending a phishing URL of their choice from the C&C panel.

Figure 16 – Opening Phishing URL



Collecting Screenshots:



The code in the below image is used by malware to steal screenshots saved at the external Storage path “/Pictures/Screenshots” of an infected device and sends them to the C&C server.

Figure 17 – Collecting screenshots



Capturing Photos:



Additionally, the malware captures pictures by opening the camera of the victim’s device upon receiving a command from the admin panel and subsequently sending pictures to the C&C server.

Figure 18 – Capturing photos



In addition to the main functionalities mentioned earlier, the DAAM botnet can carry out additional tasks such as switching WiFi and data, showing random toast, and collecting clipboard data.

Conclusion



Malware authors often leverage genuine applications to distribute malicious code to avoid suspicion. DAAM Android botnet also provides a similar APK binding service where TA can bind malicious code with a legitimate APK to appear genuine.

Detailed analysis of the DAAM Android botnet indicates that it offers several intriguing capabilities, such as Ransomware, runtime code execution, and Keylogger, among others. Although relatively fewer samples have been identified so far, based on the malware’s capability, it may target a wide number of users in the coming days.

Our Recommendations



We have listed some essential cybersecurity best practices that create the first line of control against attackers. We recommend that our readers follow the best practices given below:

  • Download and install software only from official app stores like Google Play Store or the iOS App Store.
  • Use a reputed antivirus and internet security software package on your connected devices, such as PCs, laptops, and mobile devices.
  • Never share your Card Details, CVV number, Card PIN, and Net Banking Credentials with an untrusted source.
  • Use strong passwords and enforce multi-factor authentication wherever possible.
  • Enable biometric security features such as fingerprint or facial recognition for unlocking the mobile device wherever possible.
  • Be wary of opening any links received via SMS or emails delivered to your phone.
  • Ensure that Google Play Protect is enabled on Android devices.
  • Be careful while enabling any permissions.
  • Keep your devices, operating systems, and applications updated.

MITRE ATT&CK® Techniques



Tactic Technique ID Technique Name
Initial Access T1476 Deliver Malicious App via Other Means.
Initial Access T1444 Masquerade as a Legitimate Application
Collection T1433 Access Call Log
Collection T1432 Access Contact List
Collection T1429 Capture Audio
Collection T1512 Capture Camera
Collection T1414 Capture Clipboard Data
Discovery T1418 Application Discovery
Persistence T1402 Broadcast Receivers
Collection T1412 Capture SMS Messages
Impact T1471 Data Encrypted for Impact
Collection T1533 Data from Local System
Collection T1417 Input Capture

Indicators of Compromise (IOCs)



Indicators Indicator Type Description
0fdfbf20e59b28181801274ad23b951106c6f7a516eb914efd427b6617630f30

 SHA256   Currency_Pro_v3.2.6.apk
f3b135555ae731b5499502f3b69724944ab367d5 SHA1   Currency_Pro_v3.2.6.apk
ee6aec48e19191ba6efc4c65ff45a88e MD5 Currency_Pro_v3.2.6.apk
hxxp://192.99.251[.]51:3000/socket.io/ URL C&C server
184356d900a545a2d545ab96fa6dd7b46f881a1a80ed134db1c65225e8fa902b SHA256   PsiphonAndroid.s.apk
bc826967c90acc08f1f70aa018f5d13f31521b92 SHA1   PsiphonAndroid.s.apk
99580a341b486a2f8b177f20dc6f782e MD5 PsiphonAndroid.s.apk
37d4c5a0ea070fe0a1a2703914bf442b4285658b31d220f974adcf953b041e11 SHA256   Boulder.s.apk
67a3def7ad736df94c8c50947f785c0926142b69 SHA1   Boulder.s.apk
49cfc64d9f0355fadc93679a86e92982 MD5 Boulder.s.apk
